SlickRide™️ – Shock Mitigation Tool

SlickRide: Shock Without Compromise.

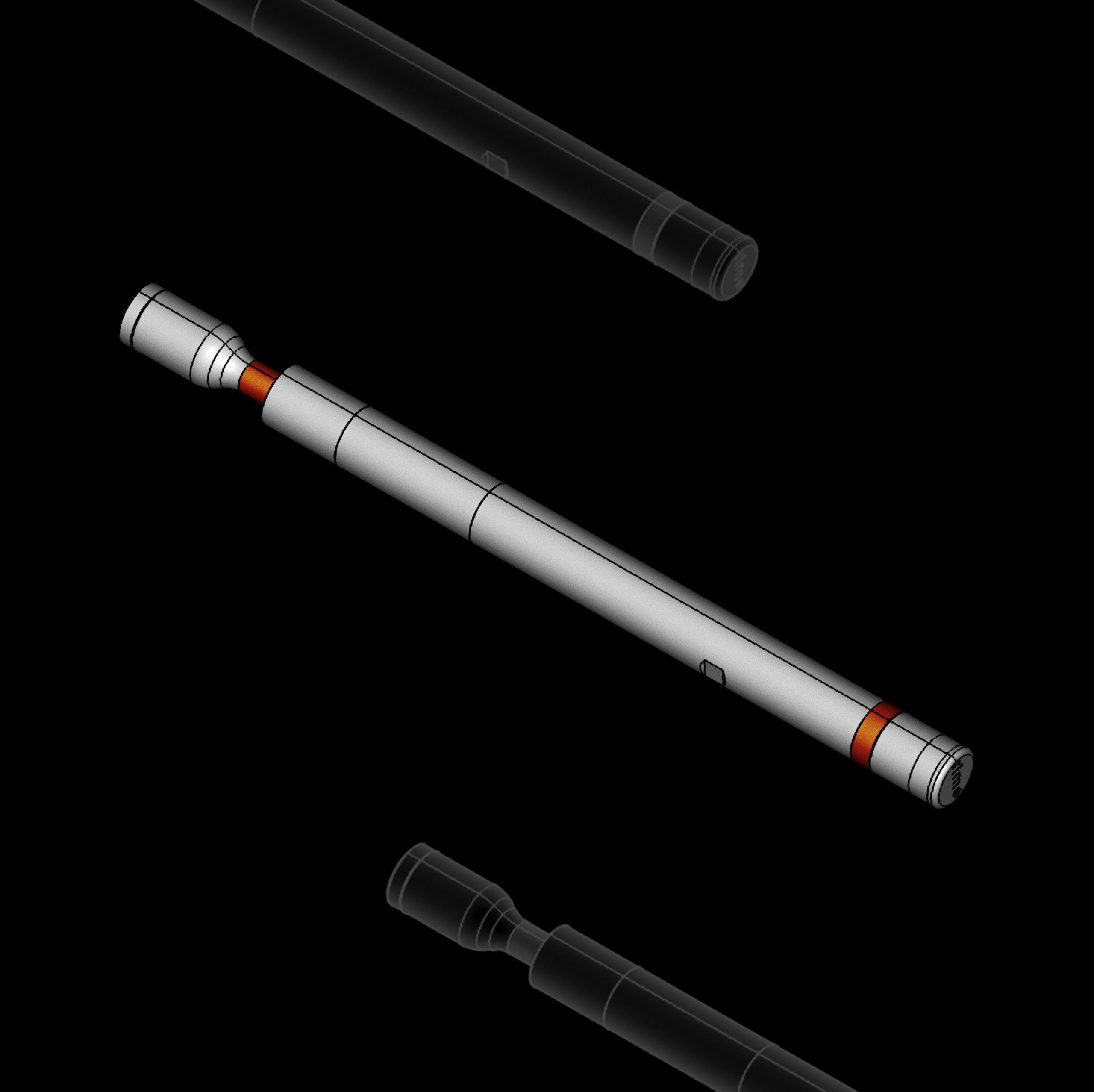

Agitation tools increase ROP, but they punish MWD electronics. SlickRide protects sensitive systems without elastomers that fail in high heat. Its tuned spring-mass design and hydraulic viscous damping deliver true second-order frequency attenuation, mitigating shock up to 175°C and allowing tools to survive aggressive drilling dynamics that destroy conventional isolators.

Fully retrievable and rebuildable in under an hour, SlickRide turns shock mitigation from disposable expense into durable asset, transforming existing systems into high-performance survivors built to endure punishment other isolators cannot match.

Add to quote
Categories: ,

Description

Survive the Shock

  • Non-Elastomeric Design:Eliminates the rubber elements that degrade in high-temperature wells, ensuring consistent performance up to 175°C (347°F).
  • Tunable Attenuation: The spring stack-up can be adjusted to shift the resonant frequency between 7Hz and 20Hz, allowing you to match the tool to your specific agitation device.
  • Viscous Damping: Uses hydraulic damping to provide true frequency attenuation (40dB reduction at twice the resonant frequency) with little to no gain at resonance.
  • Piston Compensation: Replaces fragile bladders with a robust piston compensation system, preventing failure under high-impact loading and deep-well hydrostatic pressure.
  • Rapid Serviceability: Designed for the shop floor, the entire tool can be torn down, inspected, and rebuilt in less than one hour.

Product Brochure

Start drilling with certainty.
